ISO TANKS

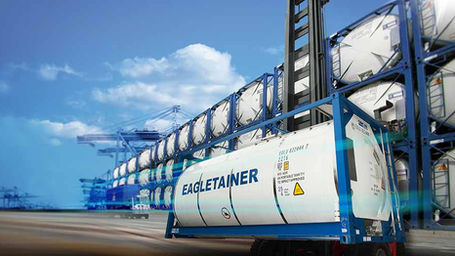

EAGLETAINER fleet consists of IMO 1 Type UN T11 full frame stainless steel ISO-tank containers built to exacting

specifications meeting ADR, IMDG and AAR600 standards.

​

These tanks have a capacity of 25,000 litres with steam heating facilities.

DESIGN SPECIFICATION

TANK TYPE: 20ft ISO UN Full Frame Tank

CAPACITY: 25,000 litres -1 +1.5%

MAX GROSS 36,000 kg

PRODUCTS: General purpose liquids

MAWP: 4 bar

TEST PRESSURE 6 bar

VESSEL DESIGN TEMP.: -40 deg C to 130 deg C

TYPE APPROVALS: UN portable tank (T11 IMDG, CFR49, ADR/RID), UIC, TIR, CSC, TC

VESSEL

DESIGN CODE:

MATERIAL:

ASME VIII Div 1 where applicable.

Shell Material: STAINLESS STEEL 316L

Manufacture Thickness: 4.6mm

The equivalent thickness in mild steel: 6mm

Ends Material: STAINLESS STEEL 316L

Manufacture Thickness: 4.5mm

The equivalent thickness in mild steel: 6mm

FRAME

TYPE: ISO 1496/3 (1CC) without saddles.

WALKWAY: 475mm wide non-slip aluminum. One full longitudinal walkway at right hand side,

transverse section at rear end frame, short transverse section adjacent to rear of

manway box

LADDER: Rear right hand side and stainless steel anti slip rungs.

COMPONENTS

SAFETY RELIEF VALVE: 1×21/2" pressure only valve set at 4.4 bar

MANLID: 500mm dia. hinged 8 point manlid

AIRLINE: 1.5" ball valve

TOP OUTLET PROVISION: 3" low profile tank pad complete with blank flange.

BOTTOM OUTLET: 3" 45 deg highlift footvalve and 3" clamped butterfly valve to 3" BSP stainless steel

dustcap

Footvalve complete with remote closure system.

STEAMHEATING: Effective heating area ranges from 7.5 sqm to 12.2 sqm.

DOCUMENT HOLDER: Φ75 × 325mm Plastic document holder fitted to rear end frame

THERMOMETER: Glycerin filled Analogue thermometer

INSULATION & CLADDING

INSULATION: 50mm thickness Rockwool

HORIZONTAL STEAM TUBES: Barrel: 1.8mm thick White (RAL9003) glass reinforced plastic;

CLADDING: Ends: 2.0mm thick White (RAL9003) glass reinforced plastic.
